Relay Locations

As soon I will install new horn set, I need to find relay.
Can't find good source of information about them, so I'll as usual try to summarize what I have.

Post will be updated as I get more relevant info.

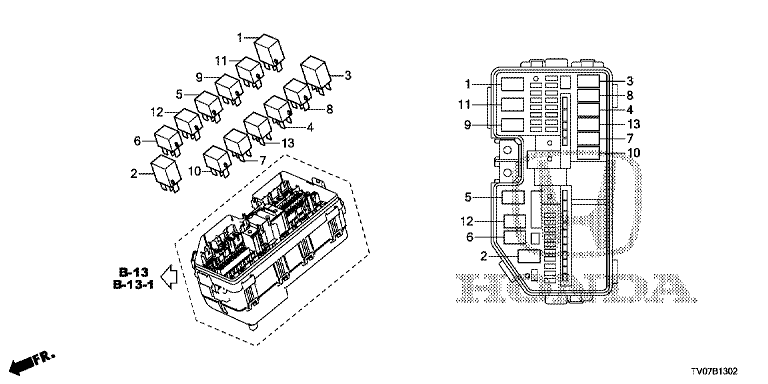

B-13-2 Control Unit (Under The Hood) (2)

#1 39792-SDA-A01 (MICRO ISO) (OMRON) (Air Blower)
#2 39792-SDA-A01 (MICRO ISO) (OMRON) (Rear Window Heater)
#3 39794-S10-003 Power Relay (5P) (MICRO ISO) (MITSUBA) (Fan Low/High)
#4 39794-SDA-003 Fuel pump (MITSUBA)
#5 39794-SDA-901 ECU (MITSUBA) (Ignition Coil)
#6 39794-SDA-A03 (MICRO ISO) (OMRON) (Fuel Injector System Secondary)
#8 39794-SDA-A03 (MICRO ISO) (OMRON) (Main Fan)
#9 39794-SDA-A03 (MICRO ISO) (OMRON) (Secondary Fan)
#10 39794-SDA-A03 (MICRO ISO) (OMRON) (Front Fog Lights)
#11 39794-SDA-A03 (MICRO ISO) (OMRON) (STARTER CUT 1)
#12 39794-SDA-A03 (MICRO ISO) (OMRON) (STARTER CUT 2)
#13 39794-SDA-A05 (MICRO ISO) (MITSUBA) (Magnetic Clutch)

B-13-10 Control Unit (Cabine) (1) (Left Drive)

#17 39770-TV0-E51 HFT Unit
#18 39794-SDA-003 Fuel Pump (MITSUBA) (IGNITION)
#19 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Rear Secondary)
#20 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Secondary)
#21 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (WASHER)
#22 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (FR. WIPER)
#23 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Rear Wiper)
#24 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (HEADLIGHTS WASHER)
#25 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Horn)
#26 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (IGNITION)
#27 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Secondary)
#28 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (MIDDLE ACCESSORY)
#29 39980-TV1-G11 EPS Unit (Rewritable)

Position B-7-2 (behind radio and air controls)

Position #13

Back

B-13-12 Control Unit (Cabine) (2)

#1 39794-SDA-901 ECU (MITSUBA) (Fuel Injection System)
#2 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Front. Access.)
#3 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (ВОЖДЕНИЕ ПО ПРОВОДАМ)
#4 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (ИНГИБИТОР)
#5 39794-SDA-A03 Power Relay (MICRO ISO) (OMRON) (Windows Motor)

Regarding horn relay. It can be also in self-case, as I saw on this picture (top left corner), but I have no proof for now.

Sources:
http://estore.honda.com/honda/parts/view-honda-parts-catalog.asp?m=2013-civic-4-ex-5at&dl=
http://www.hondaworld.ru/epcrus_spare/7/category_3.htm

10,600 km | 0Y 8M

Foot cove

I was looking for plastics that hide seat connections to the floor.
Because it looks missing, expense reductions, I guess.

Driver seat (from http://www.hondaworld.ru/epcrus_spare/7/3122/)

#3 - 81104-TV1-E01ZA - $21
#9 - 81505-TV1-E01ZA - $23

Passenger seat (from http://www.hondaworld.ru/epcrus_spare/7/3123/)

#3 - 81104-TV1-E01ZA - $21
#4 - 81105-TV1-E01ZA - $21

And decided it's too expensive :-)

10,500 km | 0Y 7M
